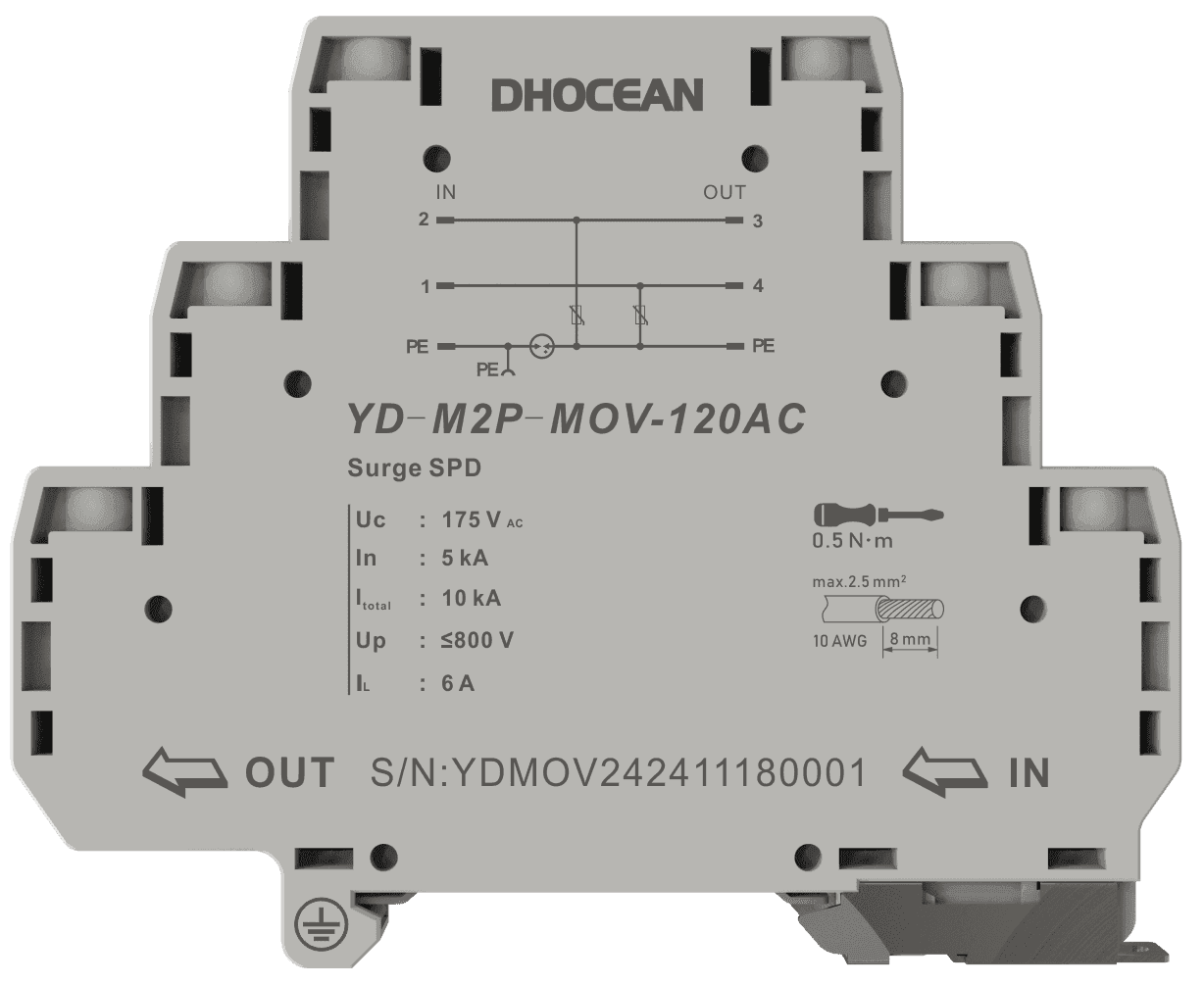

YD-M2P-MOV-120AC

Name: YD-M2P-MOV-120AC
Brand: DHOcean
SKU: YD-M2P-MOV-120AC

Ultra-slim integrated surge protective device for power, telecommunication, or signal networks with high electrical performance, saving cabinet space

For more information about this product, please contact our sales team:

+86 15800920293

Technical Specifications

26 common.items

IEC/EN/UL CategoryC1/C2/C3/D1

StandardsIEC 61643-21, GB/T 18802.21

CertificationsCE

Nominal Voltage (Un)120 V AC

Max. Continuous Operating Voltage DC (Uc)-

Max. Continuous Operating Voltage AC (Uc)175 V AC

D1 Impulse Current 10/350 μs (Iimp)0.5 kA

D1 Impulse Current 10/350 μs (Iimp_total)

C2 Nominal Discharge Current 8/20 μs (In)3 kA

C2 Nominal Discharge Current 8/20 μs (Itotal)6 kA

Voltage Protection Level C2 8/20μs (Up) X-X-

Voltage Protection Level C2 8/20μs (Up) X-C≤ 800 V

Voltage Protection Level C3 1kV/μs (Up) X-X-

Voltage Protection Level C3 1kV/μs (Up) X-C≤ 800 V

Combination Wave (Uoc/Icw)6 kV/3 kA

Series Resistance per Line-

Nominal Load Current (45℃) (IL)6 A

Cut-off Frequency (fG)-

Operating Temperature Range (Ta)-40 ℃ to +85 ℃

Permissible Humidity (RH)5%...95%

Altitude Range-500 m ... 4000 m

Terminal Screw Torque (Mmax)0.5 Nm

Connection Cross-section (max)4 mm²(solid) / 2.5 mm²(flexible)

Mounting35 mm DIN rail, EN 60715

Degree of ProtectionIP 20 (built-in)

Enclosure MaterialThermoplastic: Flammability rating UL 94 V-0
